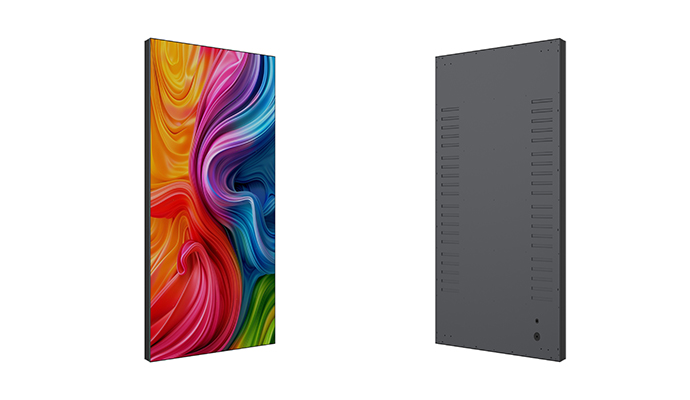

MOK Series
Outdoor

MicroLED cloud-based outdoor advertising display integrates the ultra high definition display advantages of MicroLED technology, while also incorporating a cloud based intelligent management system, bringing a innovation in both visual effect and management to the outdoor advertising field.

PRO FEATURES

- Stability and reliability have been greatly improved
- The contrast rate is up to 10,000:1
- Fine pitch LED brightness meets the outdoor need
- Significant reduction in energy consumption (30%)
- IP65 High protection level
- The module is fully sealed light spreads uniform, and the Angle of view increased

Strong Environmental Adaptability
High Brightness Adjustment
Automatically adjust the brightness according to the ambient light to ensure that the advertising content is clear and visible under direct sunlight.
Waterproof and Dustproof Design
Compliant with IP65 protection level, ensuring stable operation of device in harsh outdoor environments.
Wide Temperature Range of Operation
Supports normal operation in extremely cold or hot environments, meeting the outdoor advertising needs of different regions and seasons.

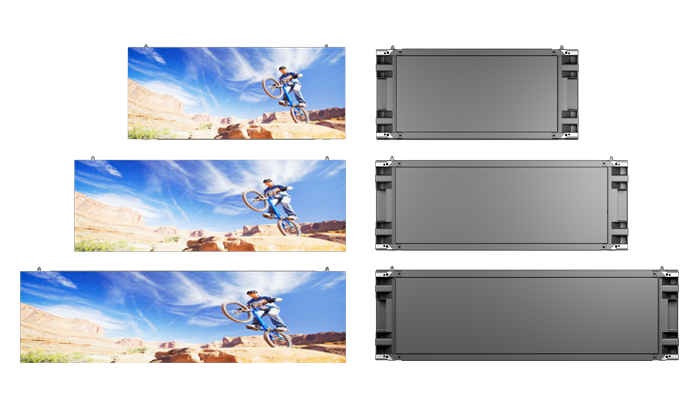

Variety of Pixel Pitches and Sizes
MOK series
offers a variety of pixel pitches and sizes, as well as many
installation methods, including single-sided, double-sided, stacking,
wall mounted, hanging, and any combination of modules, do different
creative displays, greatly improve the product's application
scalability.

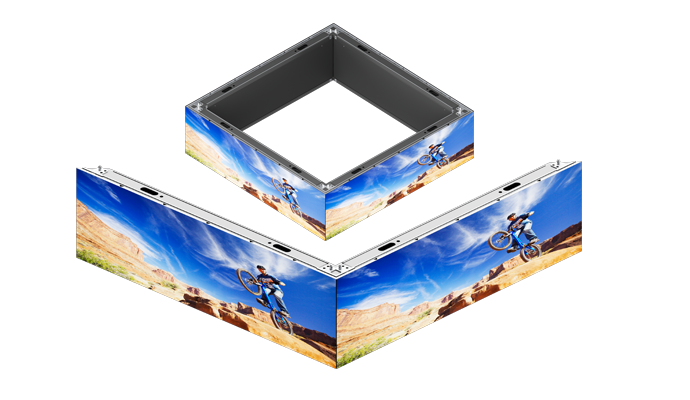

Flexible Splicing
- Horizontal Installation
- L-Shaped Heterotypical
- Vertical Installation

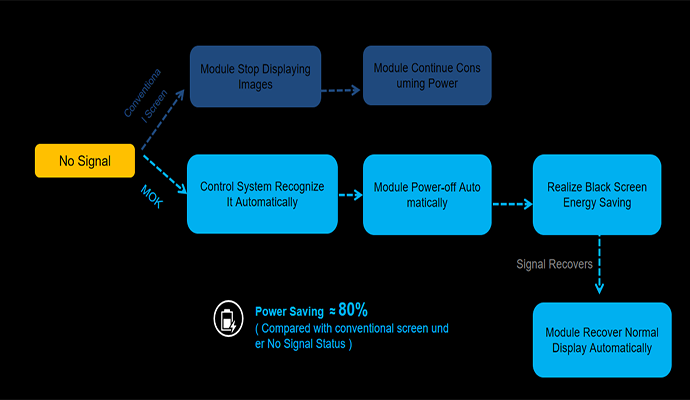

Black Screen Energy Saving (Standard)
Power Saving ≈ 80%
(Compared with conventional screen under No Signal Status)

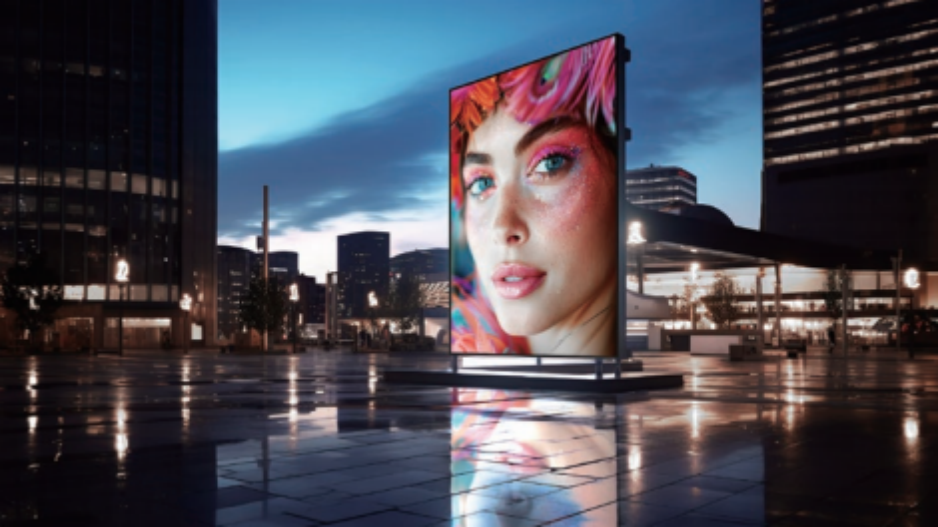

Solution

MicroLED Outdoor Kiosk has become the best in the outdoor advertising market with its excellent display effect, intelligent management function, strong environmental adaptability and energy saving and environmental protection. Choosing us make your advertising content shine in the outdoor space and lead the new trend of advertising communication.

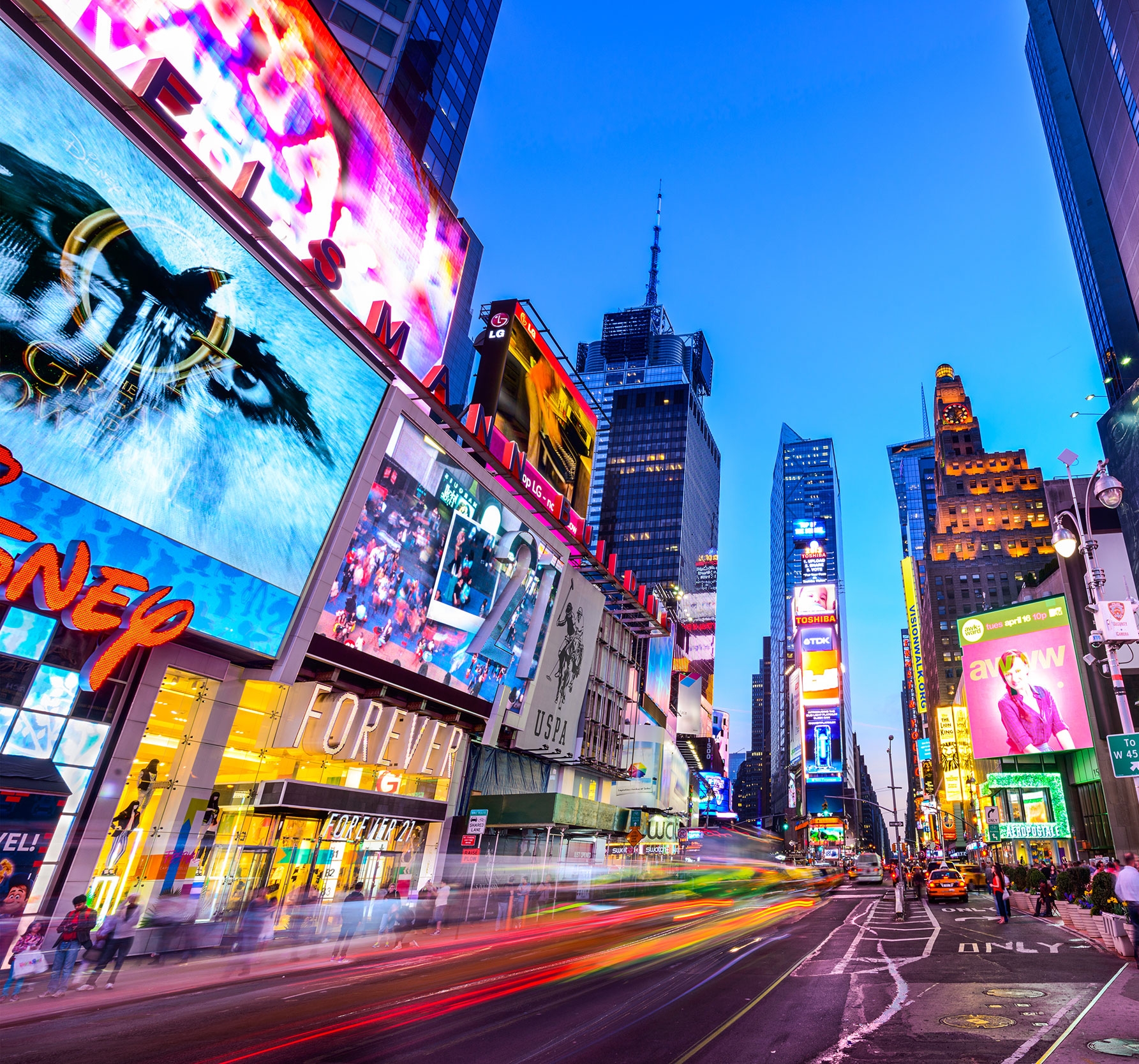

Application


  • Commercial Centers

  • Transportation Hubs

  • City Landmarks

  • Sports Events and Activitie

Specifications Table

Product model

MOK1.2

MOK1.5

MOK1.8

Pixel Configuration

SMD 0606

SMD 1010

SMD 1010

Pixel Pitch (mm)

1.25

1.538

1.875

Module Resolution (WxH)

128x216

104x176

84x144

Module Size (mm)(WxH)

160x270

160x270

160x270

Modules/Cabinet (WxH)

6x6 / 6x1 / 5x1 / 4x1

Cabinet Resolution (dots)

768x1296 / 768x216 / 640x216 / 512x216

624x1056 / 624x176 / 520x176 / 416x176

504x864 / 504x144 / 420x144 / 336x144

Cabinet Density(dot/m²)

640,000

423,704

280,000

Cabinet Size(mm)

967x1627x90 / 960x270x65 / 800x270x65 / 640x270x65

Weight per Cabinet (Kg)

50 / 9 / 8 / 6.5

Weight per Sqm (Kg)

32 / 34 / 37 / 38

Cabinet Dimension (WxHxD)mm

Aluminum profile

IP Level (front/ rear)

IP65

Brightness Max Calibrated (nit)

3000

3500

3500

Colour Temperature, Adjustable (K)

3000 to 10000

Viewing Angle (H/V)(°)

160 / 140

Contrast Ratio

10000:1

AC operation Voltage

AC100~240V(50/60Hz)

Max Power Consumption (W/㎡)

720W/SQM

Ave Power Consumption (W/㎡)

240W/SQM

Refresh rate(Hz)

≥3840Hz

Max Hanging QTY

1(75or86,98inch)

Maintenance Method

Front and Rear

Working Temperature (°C)

-20℃ ~ 50℃

Working Humidity (RH)

10 ~ 90%  no condensation

Note: The parameters in this table are for reference only, and the actual situation shall prevail.
